shenzhen cheap rj45 mini 3g gsm wireless cellular outdoor vpn dual sim modbus mobile lte wifi industrial 4g openwrt modem router

FOB Reference Price:Get Latest Price
$1.00 - $300.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
H22-FA2T-DW
Lead Time:
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 3 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$200.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Max. LAN Data Rate:
100Mbps
With Modem Function:
YES
Standards And Protocols:
Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Wi-Fi Supported Frequency:
2.4G
Wired Transfer Rate:
10/100Mbps
2.4G Wi-Fi Transmission Rate:
300 Mbps
Type:
WireLess
Application:
Network Security
Function:
FireWall, QOS, vpn, Data transmission
LAN Ports:
2
WAN Ports:
1
Certification:
CE, RoHS, FCC
Brand Name:
HOMTECS
Place of Origin:
Guangdong, China
Color:
Black red
Housing:
Metal
Warranty:
12 Months
Network:
4G/3G/2G
Serial:
rs-232+rs-485
Power:
7.5 ~ 32V DC
Dimensions:
102x100x42 mm
Firewall:
Yes
VPN:
Yes
Products Status:
Stock
Supply Ability
Supply Ability:
100000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
standard package
Port
SHENZHEN, HK
Lead Time :
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 3 To be negotiated
Product Description

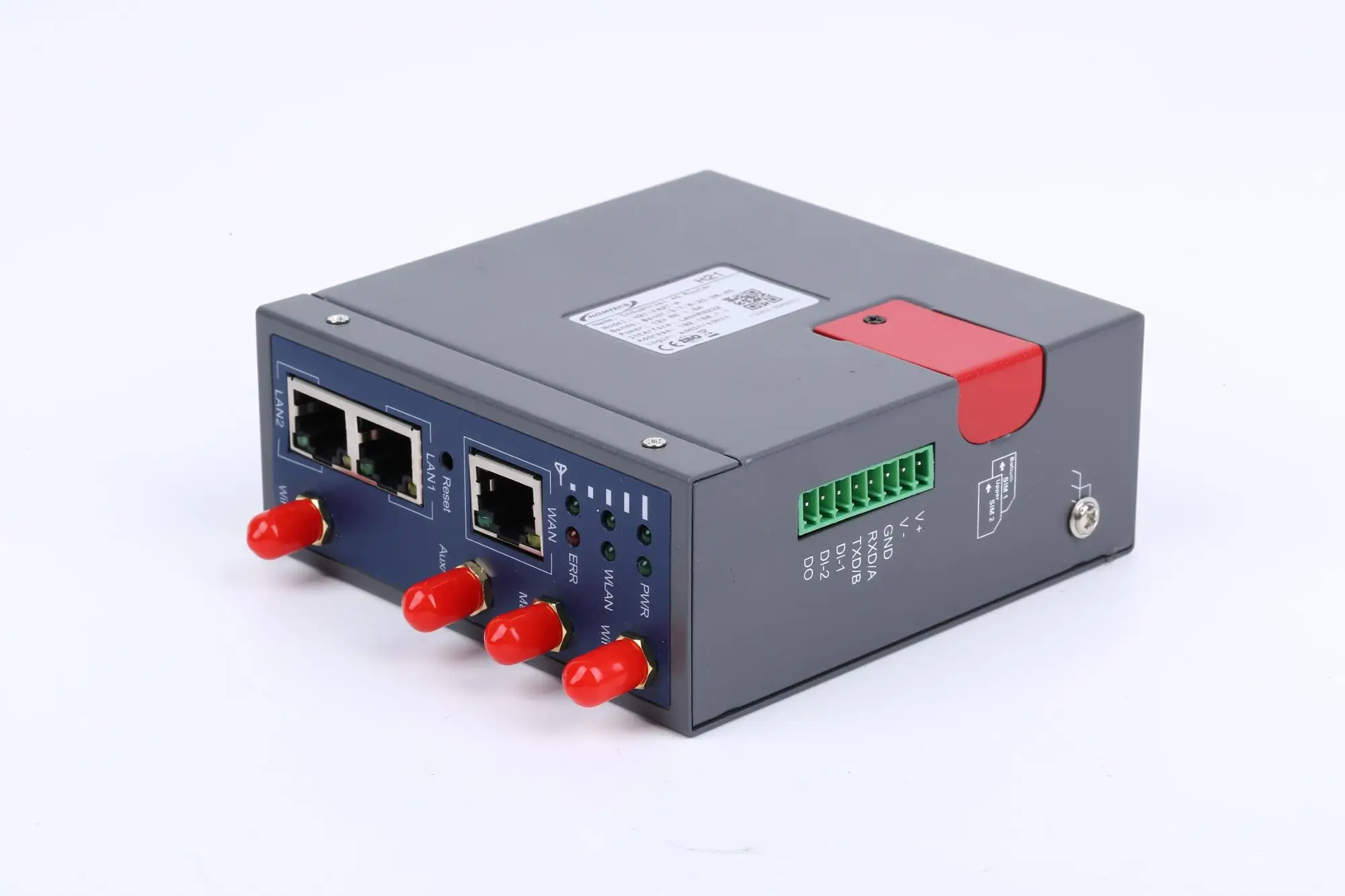

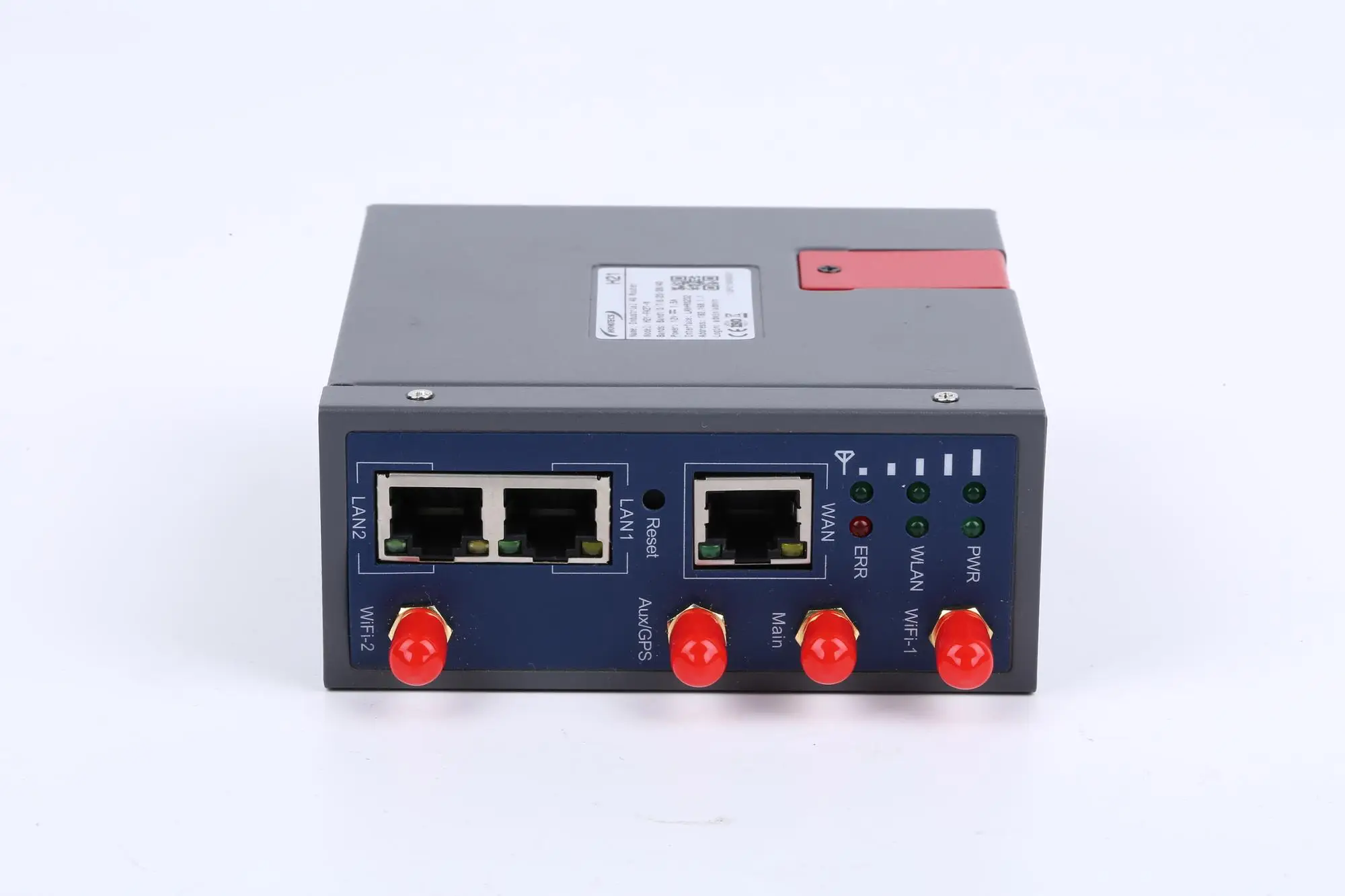

H22 series Industrial 4G WiFi OpenWRT Router

H20 series industrial 4g wifi openwrt router is a kind of internet of things wireless communication router, use FDD/TDD-LTE 4G mobile broadband network type to provide convenient and high speed net transmission function.

This series of products use high performance industrial 32 bit communication processor, flush bonding real-time operation system as software supporting platform, provide save, high speed, stable 4G wireless router net, it’s a wireless router with Dual SIM Slot, 2 Ethernet port RJ45 (1 x LAN + 1 x LAN/WAN/Serial) and 3 x I/O. It supports dual serial port rs-232 + rs-485. Its OpenWRT version is the best choice for your professional team, you can customize whatever you want.

It can be used in wifi bus, vending machine, atm, pos, finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor.etc
Specification
Cellular Interface
Number of antennas
1 or 2 (MAIN + AUX)
Connector
SMA, female
SIM
1 (3 V & 1.8 V)
Ethernet Interface
Number of ports
2x 10/100 Mbps, 2 LANs or 1 LAN + 1 WAN
Magnet isolation protection
1.5 KV
Serial Interface
Number of ports
1 x RS-232 and 1 x RS-485
Connector
WAN to serial port connector and I/O
ESD protection
±15 KV
Baud rate
300bps to 230400bps
Wi-Fi Interface (Optional)
Number of antennas
1 or 2
Connector
RP-SMA, male
Standards
802.11a/b/g/n, supporting AP and Client modes
Frequency bands
2.412 - 2.484 GHz (2.4 GHz ISM band)
Security
Open, WPA, WPA2, WEP
Encryption
AES, TKIP, WEP64
Data speed
Up to 150 Mbps
GPS (Optional)
Number of antennas
1
Connector
SMA female with 50 ohms impedance
Tracking sensitivity
GPS: greater than -148 dBm
Horizontal position
GPS: 2.5 m
Protocol
NMEA-0183 V2.3
Software (Homtecs version/OEM version/OpenWRT version)
Network protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, DMZ, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH2 etc.
VPN tunnel
PPTP, L2TP, IPsec, OpenVPN, GRE
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Serial port
Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Management
Web, Telnet, SHH, CLI, SMS, M2M Management Platform
Others
Reset button
1 x RST
LED indicators
1 x LAN, 1 x WAN/LAN, 1 x WLAN, 1 x PWR, 1 x ERR
Built-in
RTC, Watchdog, Timer
Power connector
Terminal female
Input voltage
7.5 to 32V DC
Power consumption
Idle: 160 mA@12 V
Data link: 220 mA (peak) @12 V
Ingress protection
IP34
Housing & Weight
Metal, 450g
Dimension
102 x 100 x 42 mm
Installation
Desktop, Wall mounting and DIN rail mounting
Customization
Support OEM and ODM
Typical Application
Retail
ATM, POS(Point-of-Sale), Vending Machine, Lottery Machine, Branch network, Digital Signage, Video Surveillance, Failover between WAN&4G/3G
Utilities
Smart City, Traffic, Street lighting, Public Safety, 4G Public hotspot, Environment monitoring, Video Surveillance, Telecom equipment supervision, Early Warning of Mountain Torrent, Power distribution network supervision, Central heating system
supervision, Weather station data transmission, Hydrologic data acquisition
Industrial
Remote Telemetry, Tanking Monitoring, Automation, Remote PLC, Remote AMR, Remote Data Monitoring and control, CCTV, Security Surveillance
Energy
Digital Oil/Gas Field, Coal Mine, Solar, Smart Grid
Transportation
Bus WiFi, WiFi on Board, Vehicle video surveillance, Fleet tracking and management, Vehicle logistics and diagnostics controlling, Bus Advertising
